New versions of BN series IO-Link control device units

The BN series control device unit with IO-Link technology has been updated with new functions and configurations, significantly extending its scope of application. With new versions enabling integration of 4, 7 and 8 devices, updated firmware and replaceable lenses, the BN IO-Link control device unit is now an even more versatile solution for man-machine interfaces.

Lorem ipsum dolor sit

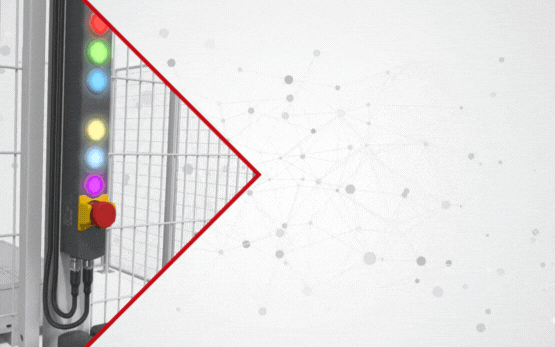

Wide range of possible configurations

Introduction of the new versions makes it possible to integrate 3, 4, 6, 7 or 8 control devices within the same BN IO-Link control device unit.

Each BN IO-Link unit can be customised with illuminated buttons, 2 or 3-position selector switches, key selector switches or emergency-stop buttons, enabling machinery manufacturers to easily build the most appropriate configuration for their application.

Lorem ipsum dolor sit

IO-Link update

BN IO-Link series control device units have also been updated with the new firmware release compliant with IO-Link protocol specification 1.1.4.
This update introduces the option of monitoring the state of the emergency stop button via the IO-Link protocol. Management of the safety function remains assigned to the two dedicated NC contacts, but it is now possible to acquire auxiliary information on the button's state directly via the IO-Link protocol.

Lorem ipsum dolor sit

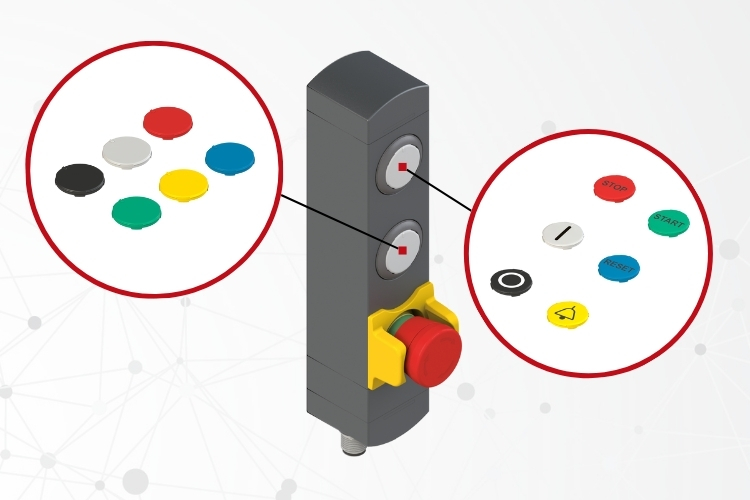

Interchangeable and customisable lenses

The BN IO-Link series control device unit can be further customised thanks to new interchangeable coloured lenses available with or without markings.

Six colours are currently available: black, white, red, green, yellow and blue. A wide selection of markings can be added, in the form of either text or symbols.

This solution makes it possible to quickly adapt and replace the lenses on devices based on application requirements.



For further technical details, download the brochure.
