News

NX series now also in AISI 316L stainless steel

NX-INOX

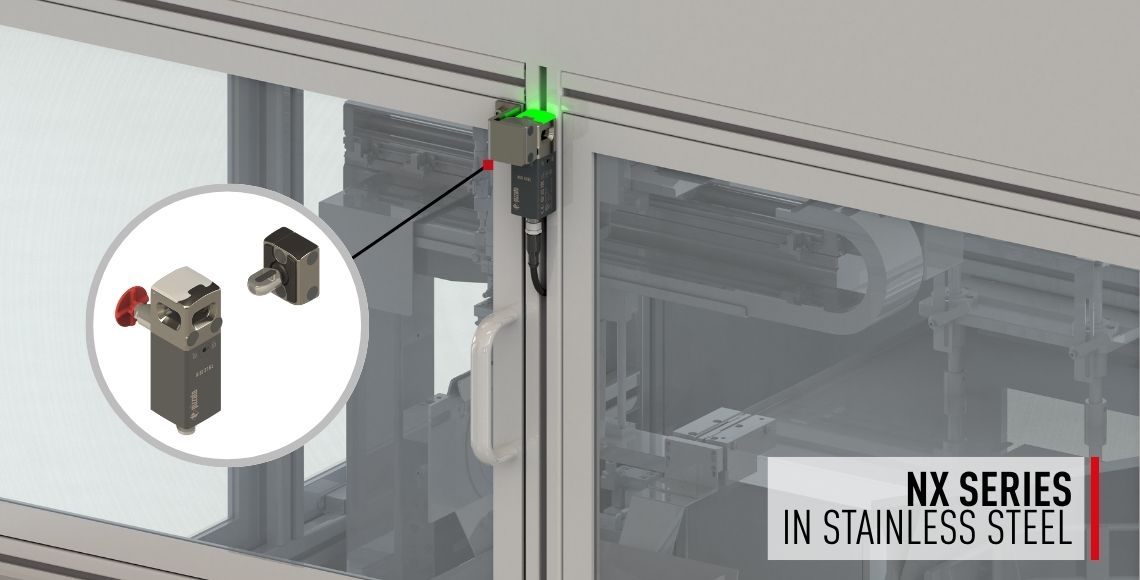

At the SPS 2025 trade fair, Pizzato Elettrica presents a new version in its NX series — the smallest RFID interlocking devices with lock in the world — now also available with external parts in AISI 316L stainless steel.

This solution has been designed to offer maximum mechanical strength and corrosion resistance, whilst guaranteeing the highest functional safety levels PL e + SIL 3.

NX-INOX

Maximum resistance even in the most demanding environments

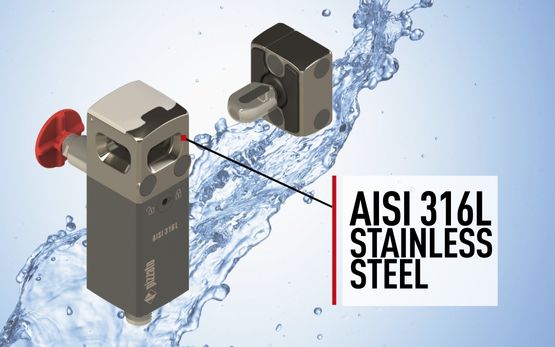

The new version in AISI 316L stainless steel further improves on the quality standards of the NX series, making this the ideal solution for applications requiring high levels of hygiene and durability.

The NX series device with external parts in stainless steel is the perfect solution for applications in contexts subject to frequent washing with chemical detergents or in corrosive environments, which are common conditions in food & beverage, pharmaceuticals, chemicals and marine sectors.

In addition, with ECOLAB certification and protection degree IP67-IP69K, these devices guarantee high performance and reliability even when exposed to high-pressure and high-temperature cleaning cycles.

New mounting brackets available for the NX series

Together with the NX version with external parts in stainless steel, customers can now order the new mounting brackets in strong painted steel, for easy installation of devices on 30 or 40 mm profiles.

The new 5 mm thick brackets are compatible with sliding or hinged doors and can be installed on either the inner or outer side of the door.



For further technical details, download the brochure.

NX-Staffe​
