General features
Ambient temperature:
From -25°C to +120°C
Housing:
Technopolymer housing
Terminal type:
Screws with self-lifting plate
Contact block:
1NO+1NC changeover
Maximum protection degree:
IP00 without terminal cover
IP20 with terminal cover VF C01, VF C03
IP40 with terminal cover VF MKCx1x, VF C02
Actuation type:
Back direct action

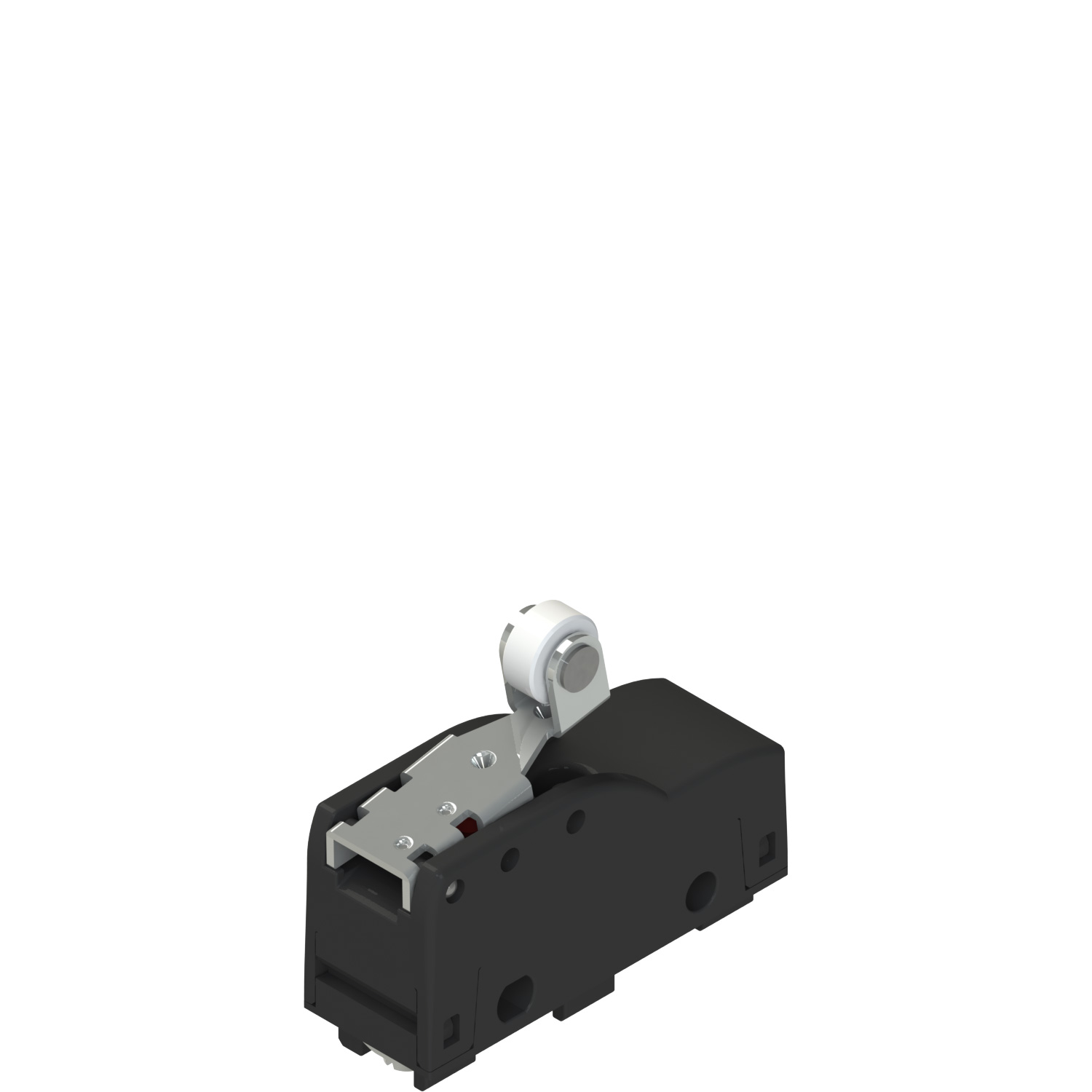

Actuator:
With roller lever (l= 17.8mm) and metal roller Ø 9.5x4 mm
Positive opening:
Yes
