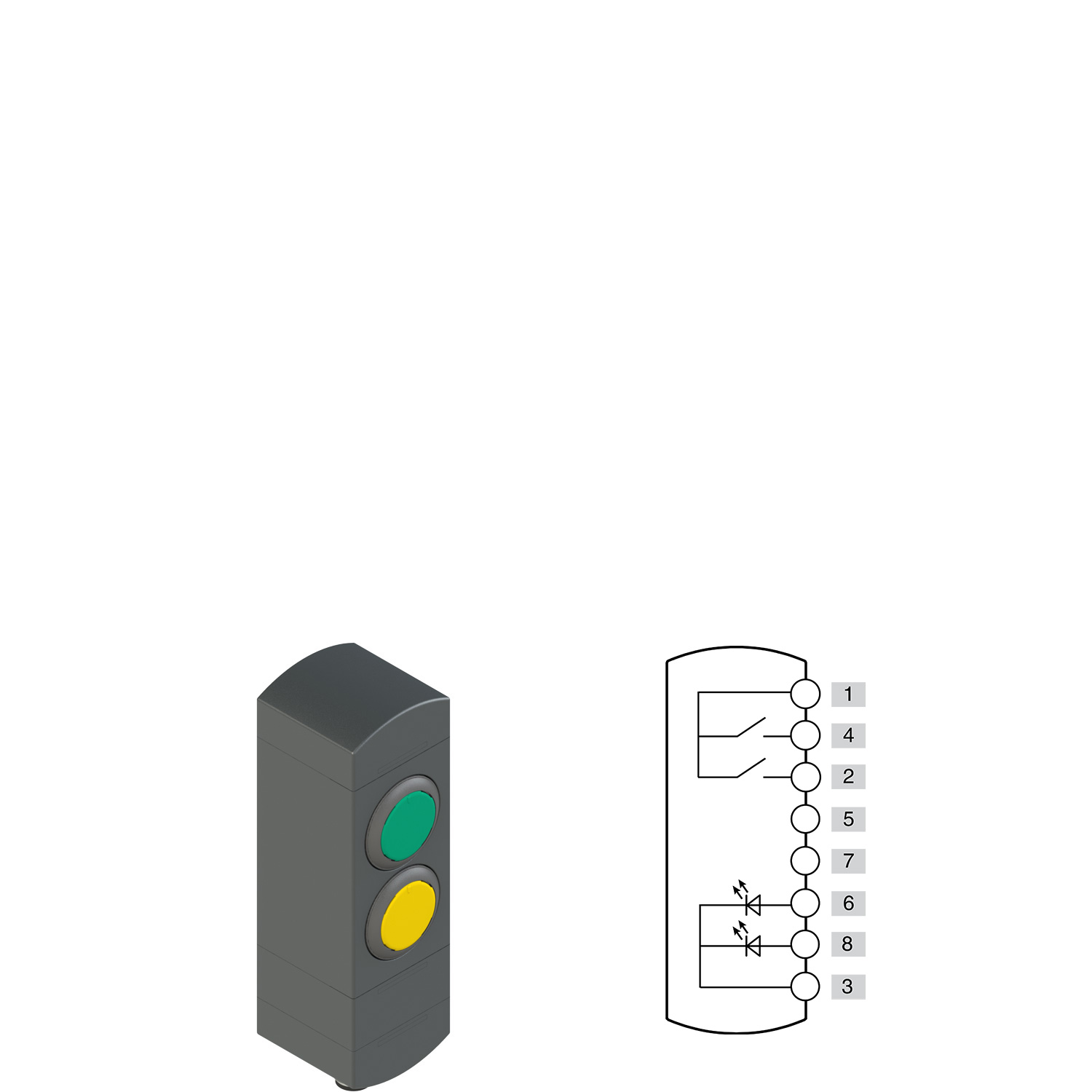

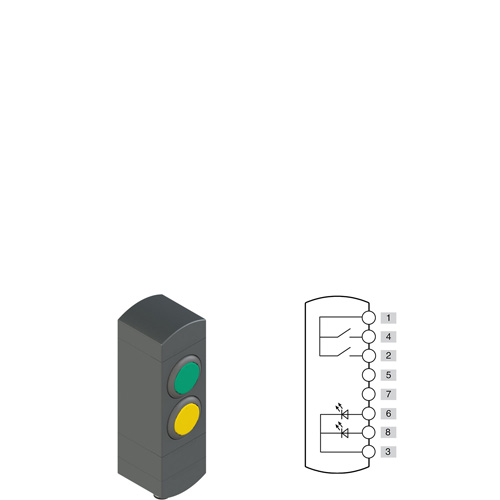

BN AC2ZA22

BN series control device unit

General features

Number of devices:
2 devices
Position 1:
1 pushbutton green 1NO
Position 2:
1 pushbutton yellow 1NO
Protection degree:
IP65 according to EN 60529
Connection and output direction:
M12 connector, 8-pole, at bottom

Product Details
Type File
General Catalog ZE_GCS06-ENG_309-322.pdf
2D file ZF_DXF_BN_AC2ZA22.zip
3D file ZF_STEP_BN_AC2ZA22.zip
Wiring diagram BN AC2ZA22.pdf
Operating instructions ZE_FOG135-EU.pdf
